COSMO 400

400ft Uncompressed 1080p Wireless Video Transmission System Supporting Both HDMI & SDI

  • Up to 400ft (120m) transmission distance
  • HDMI and 3G SDI input and output
  • Supports HDMI 1.3 & HDMI 1.4 3D
  • Full HD 1080p 60 FPS
  • No delay and no compression
  • Supports Dolby True HD, DTS-master, etc.
  • AES-128 encryption with air interface HD video data stream
  • Point-to-point & Point-to-Multi-point network
  • Industrial grade metallic body, durable and reliable
  • No interference with WiFi
  • 10 user selectable frequency channels, 5GHz ISM band
  • Wide range power voltage input. Works with any camera battery

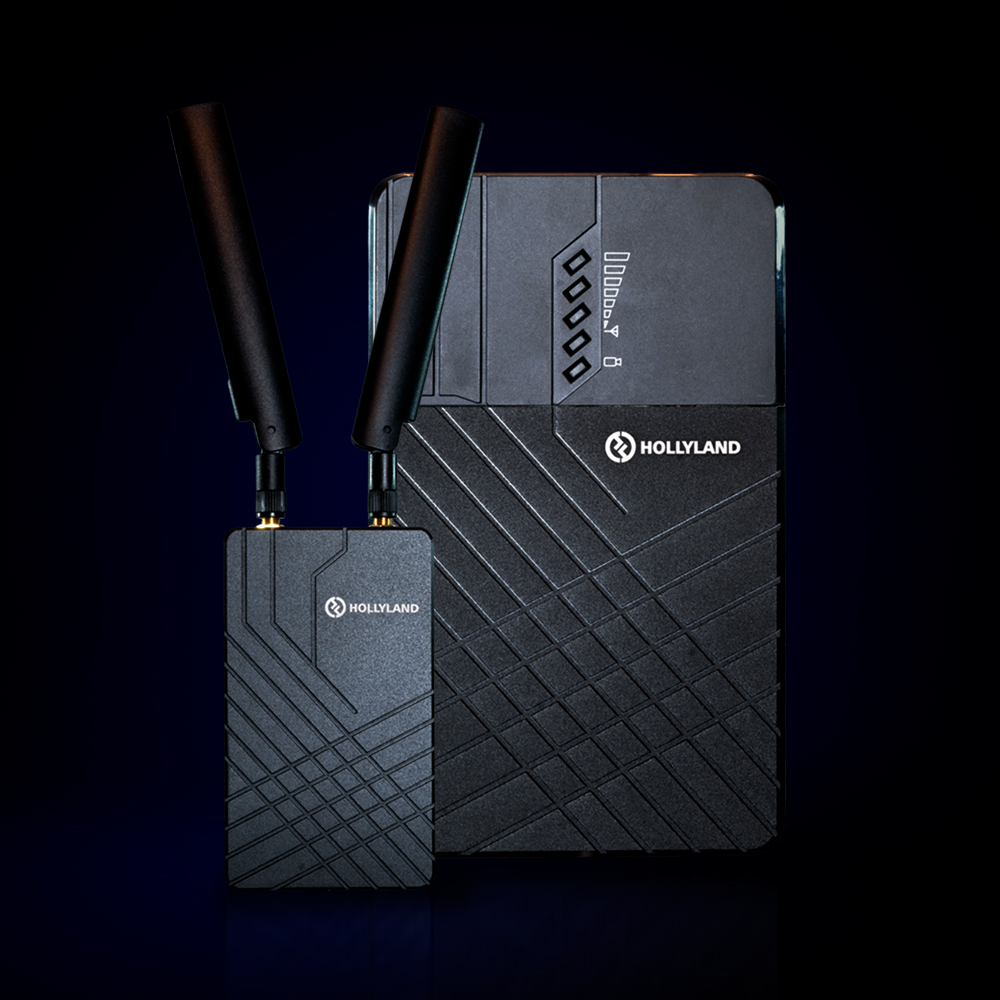

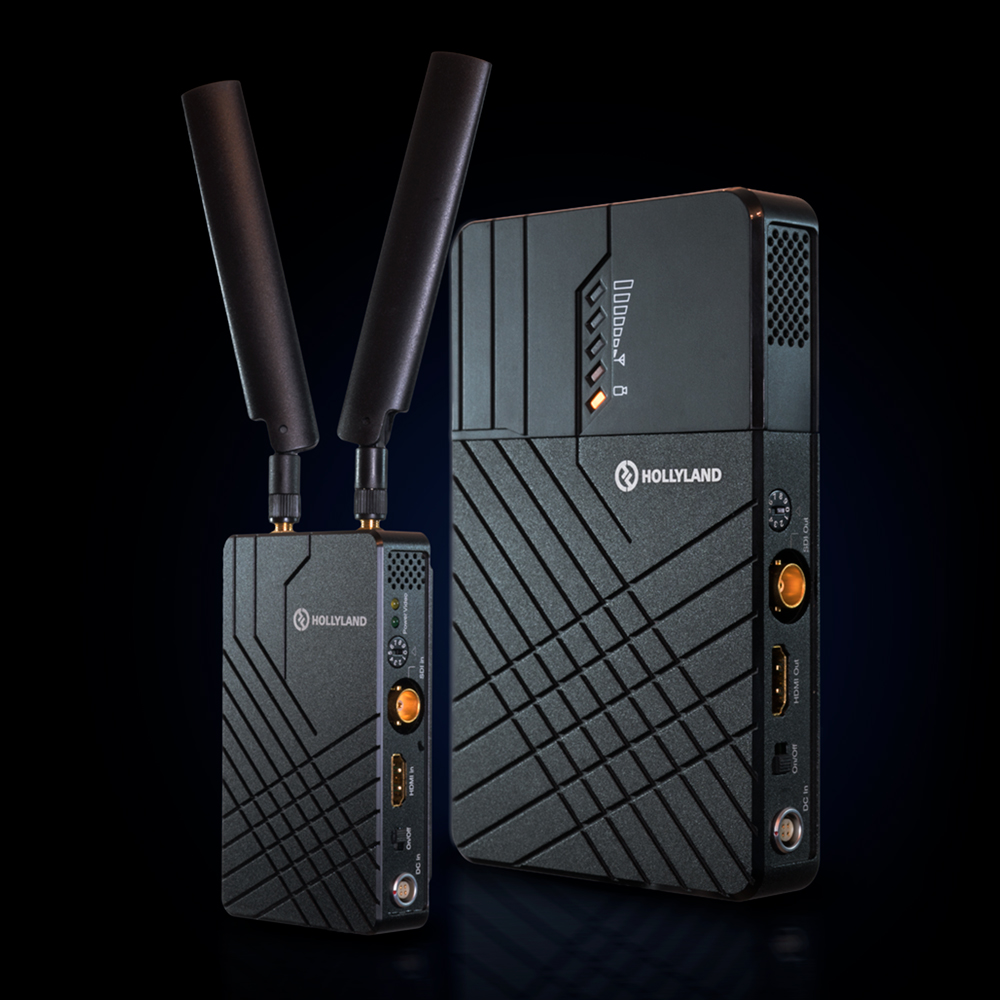

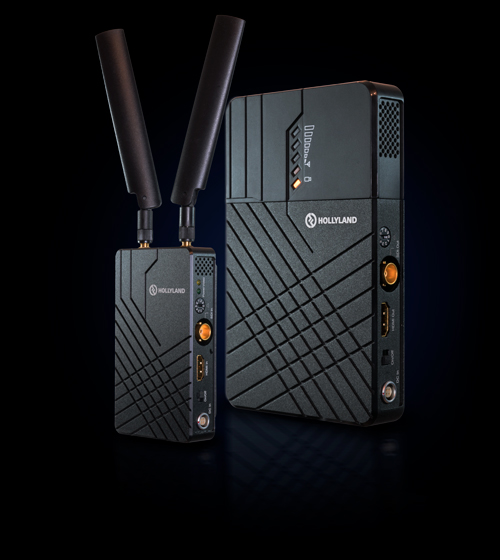

COMSO1000 Tx and Rx

Compression and Latency

No compression! No latency! COSMO 400 Wireless HDMI/SDI Transmission System utilises most advanced available wireless video transmission technology, which securely transmits reliable broadcast quality, uncompressed 3G SDI/HDMI HD video signal with no latency.

Frequency Band

The system operates in 5.1Ghz - 5.9GHz frequency range that is user configurable to match any licensed or ISM band. This makes the system flexible enough to work in any region in the world.

The side panels on both the Transmitter and the Receiver units are equipped with frequency selection knob that switches between 10 channels. The transmitter can be set to supply signal to up to 4 Receivers working simultaneously.

Power Options

COSMO 400 accepts a wide range of DC power inputs from 7v to 36v, meaning it can be operated with you existing batteries and power supplies and almost every types of industry standard batteries.

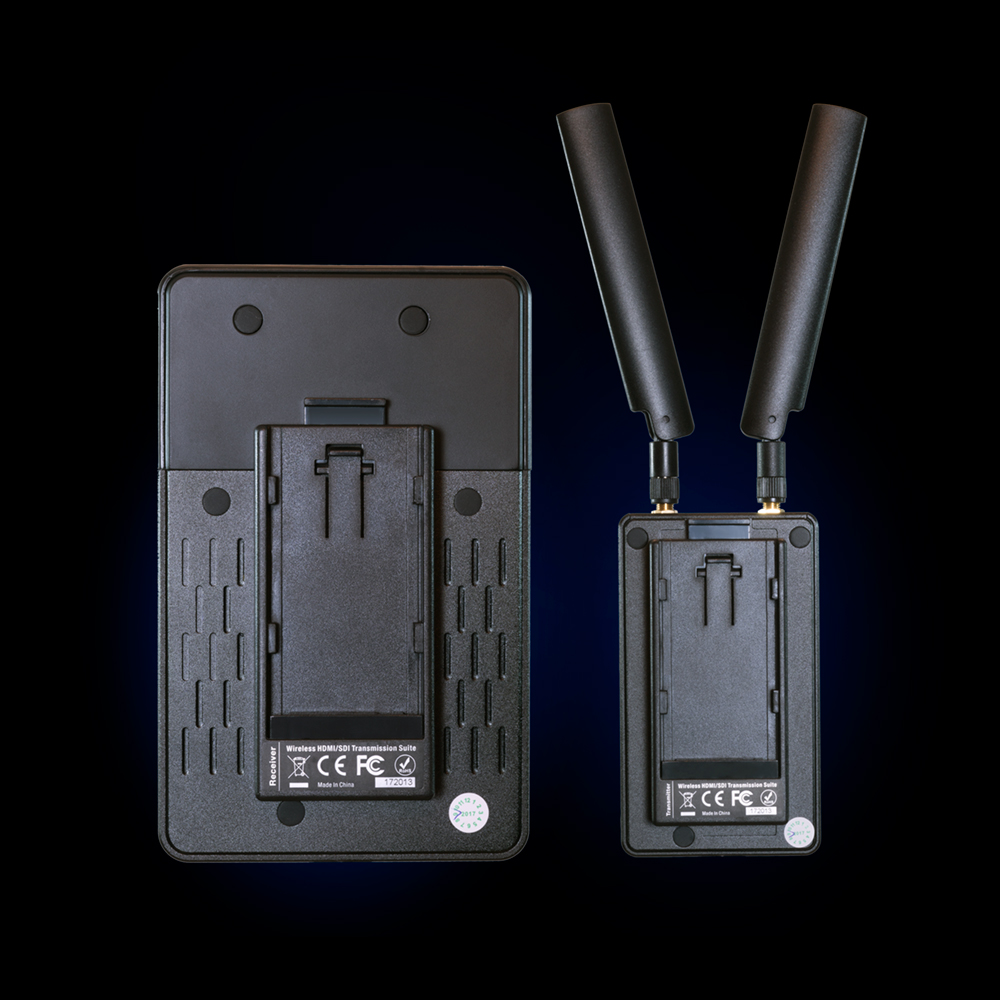

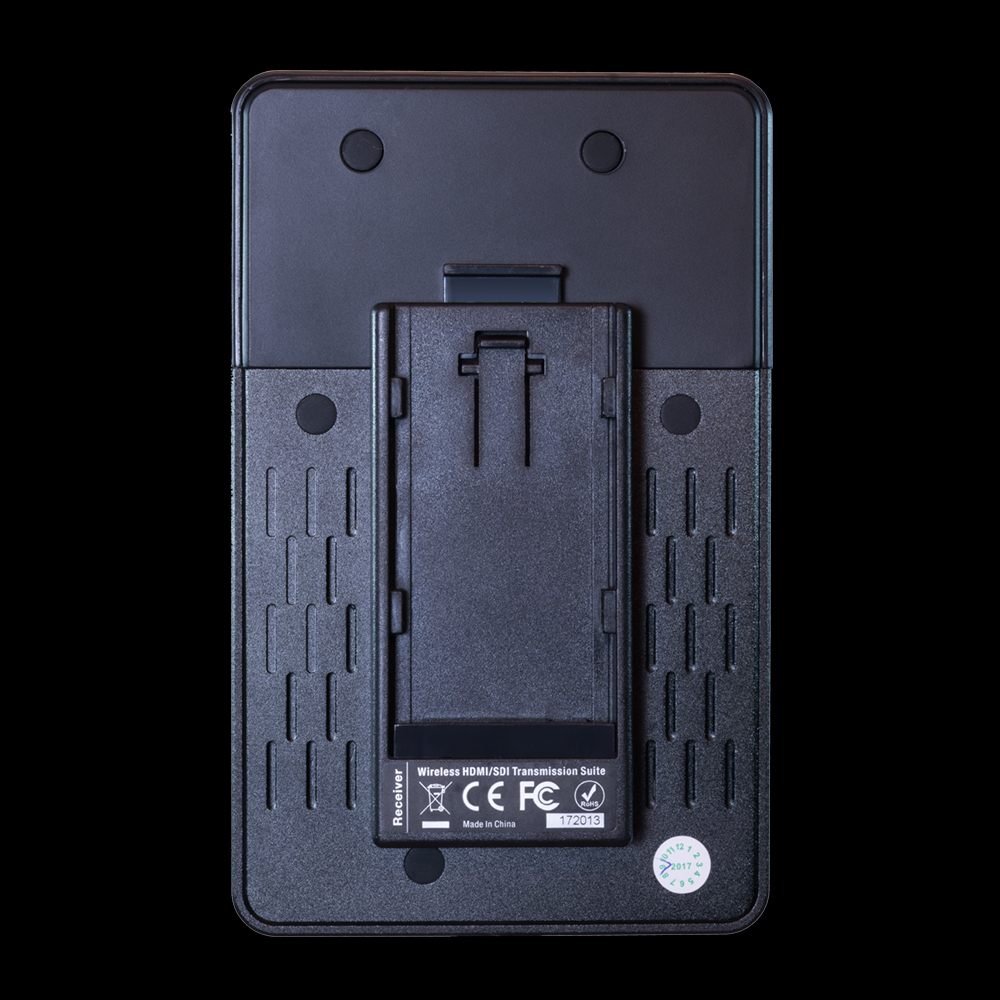

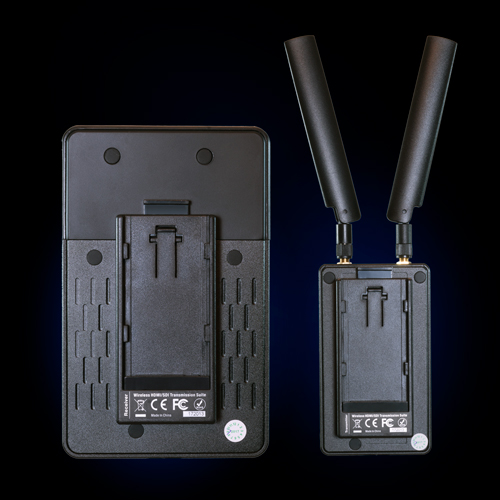

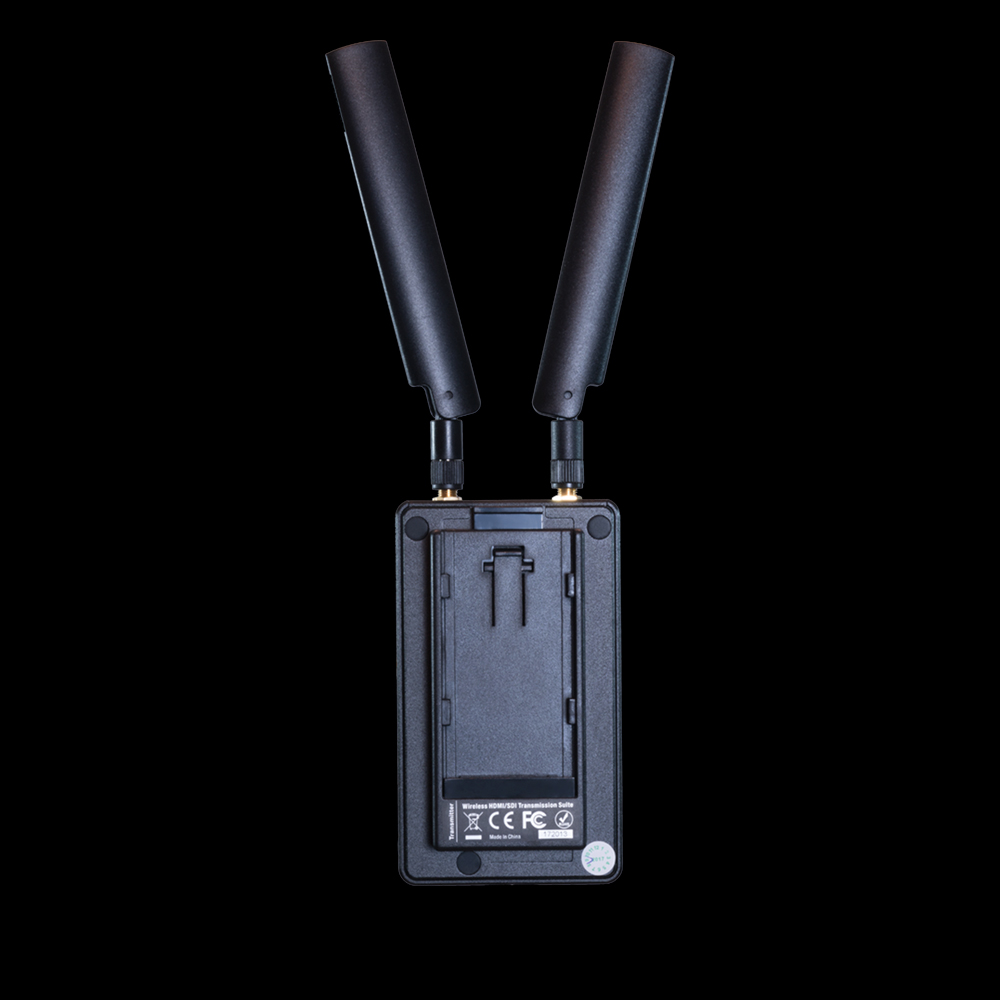

Both the Transmitter and the Receiver ship with NP compatible battery plate pre-installed.

Unit Protection

COSMO 400 input and output ports are fitted with protection for ±8 kV ESD (HBM, contact discharge) and the industry grade metal body and professional heat management design guarantees reliability and durability.

jkj

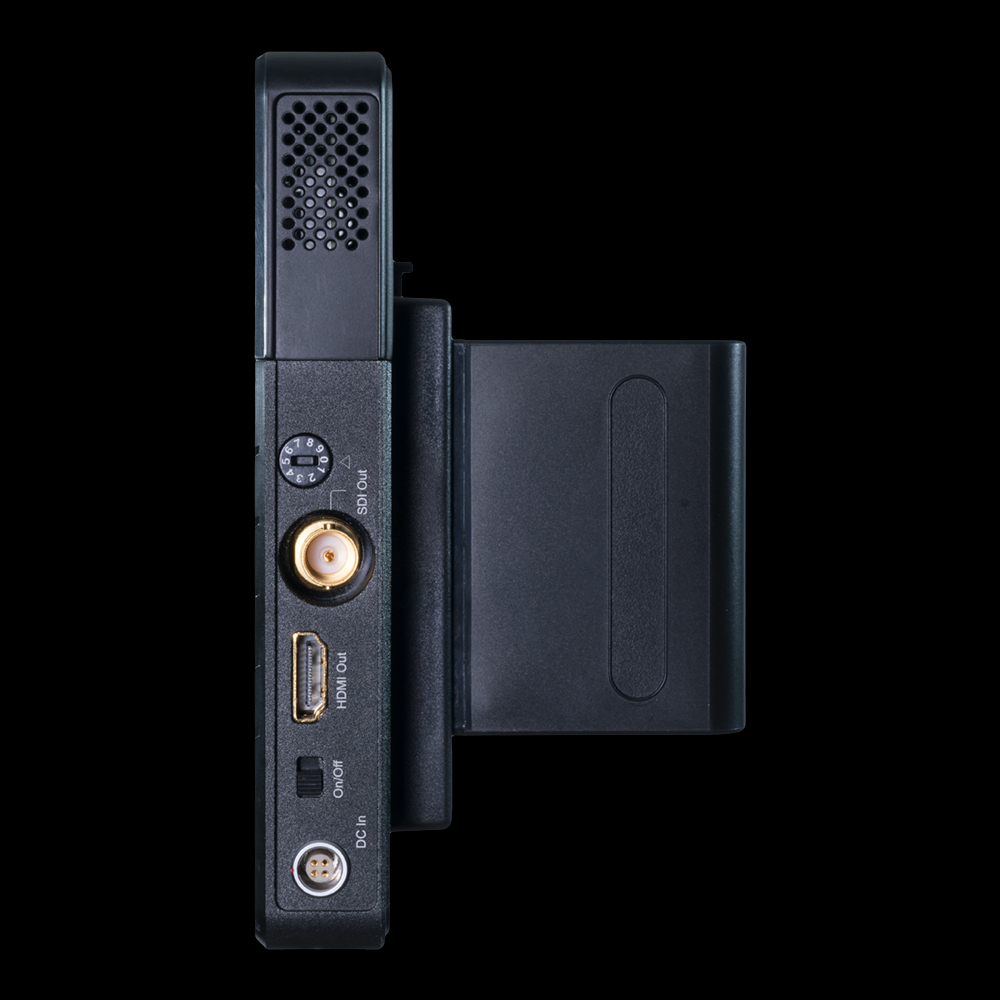

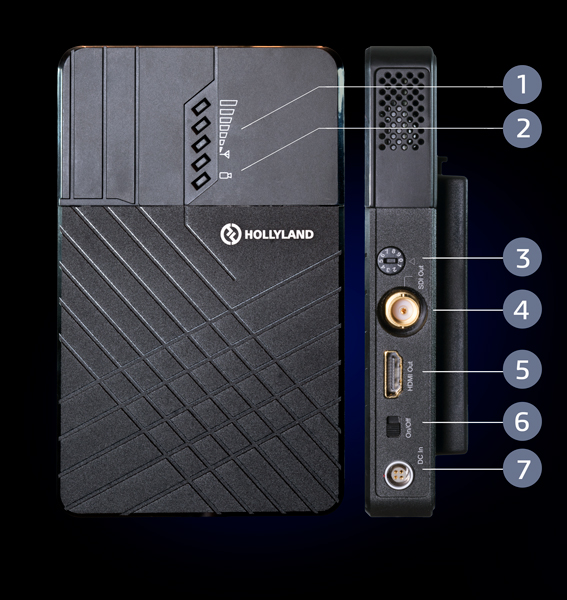

    ← Receiver

  1. RSSI Singnal Strength
  2. Power/Video Indicator
  3. Freq. Select 0-9
  4. SDI Output
  5. HDMI Output
  6. Power Switch
  7. DC In. Lemo 4Pin B

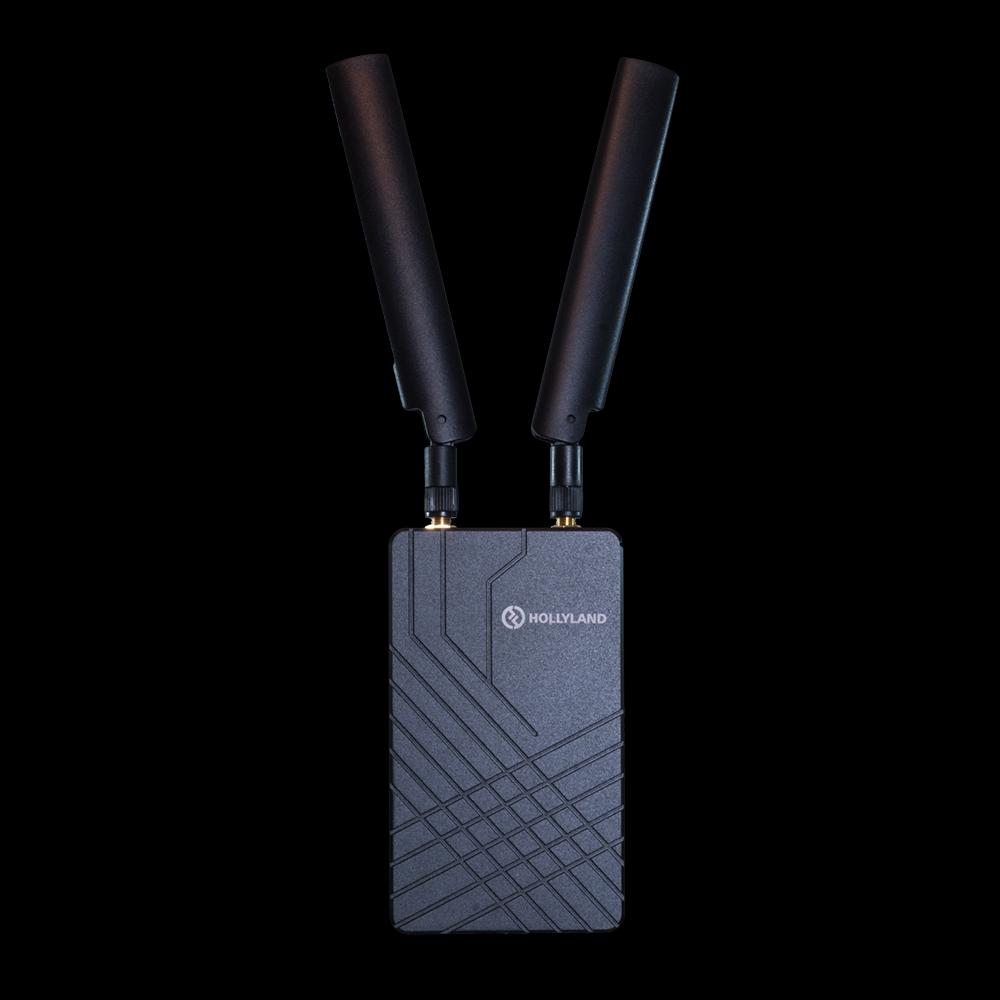

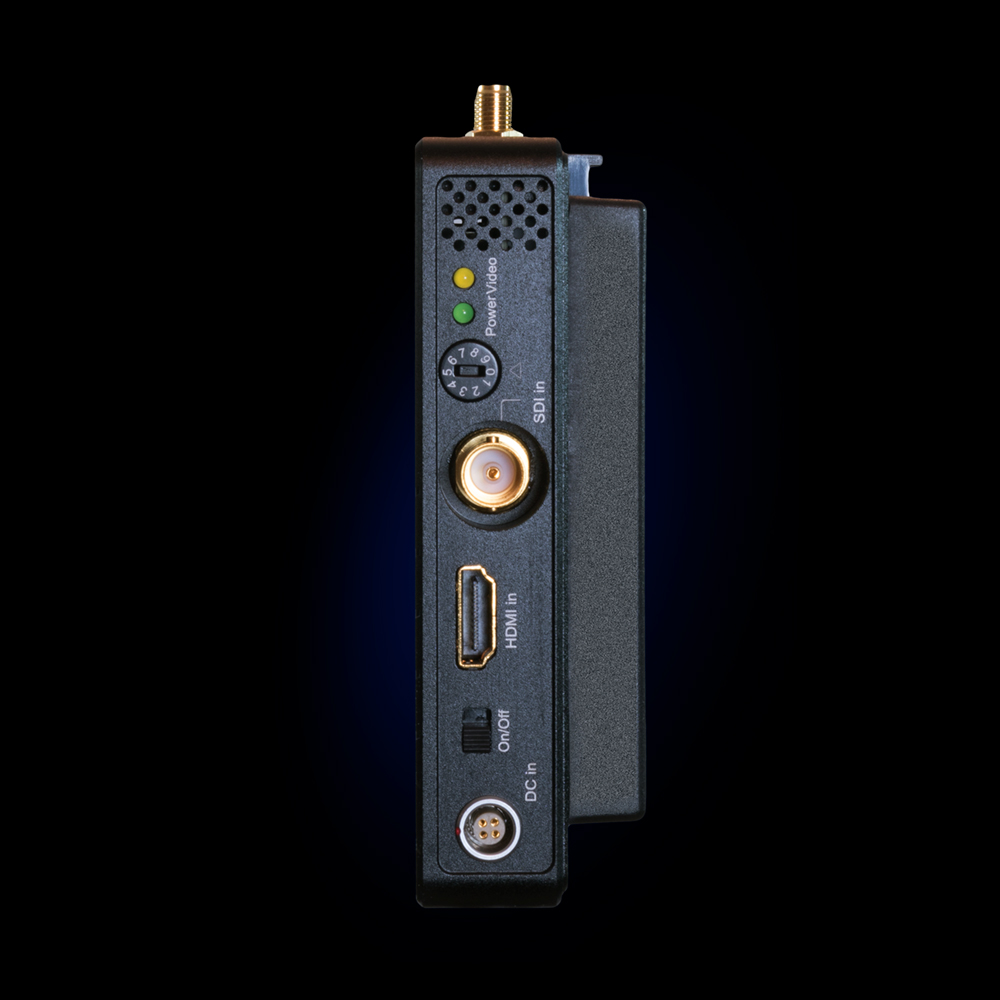

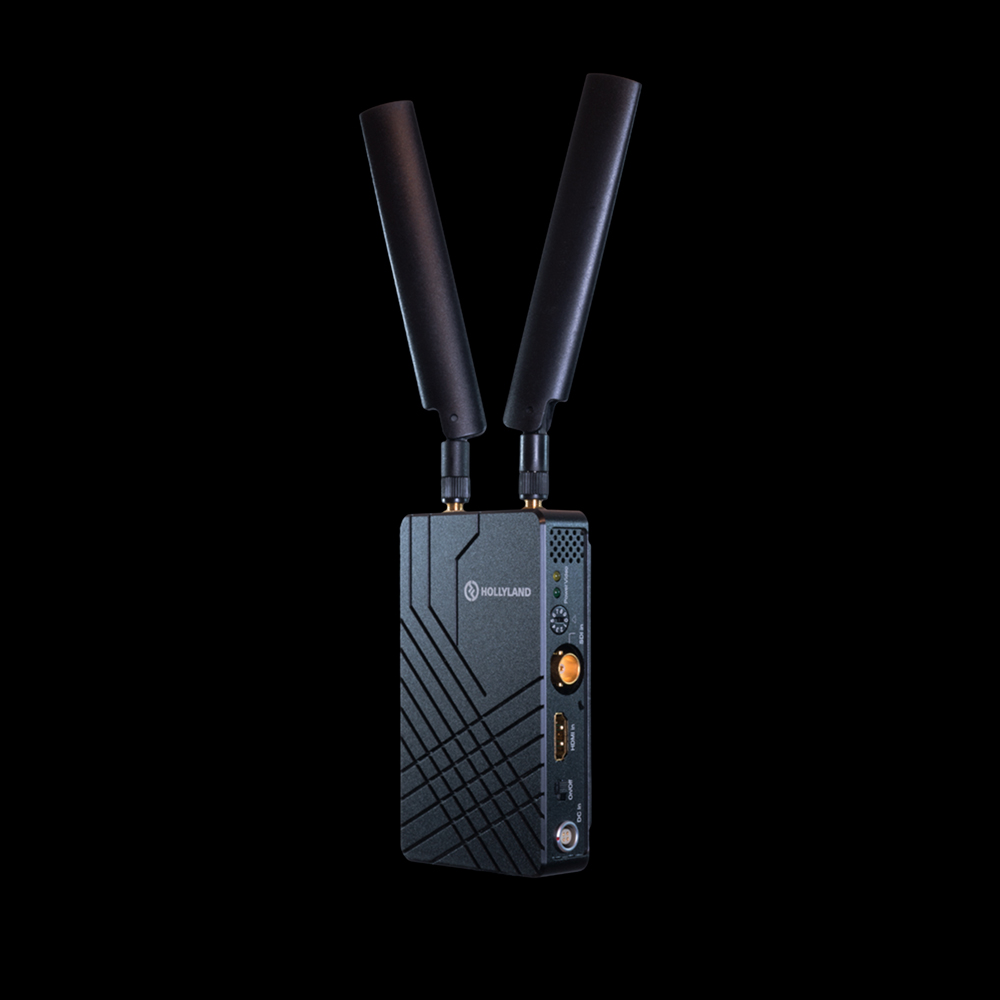

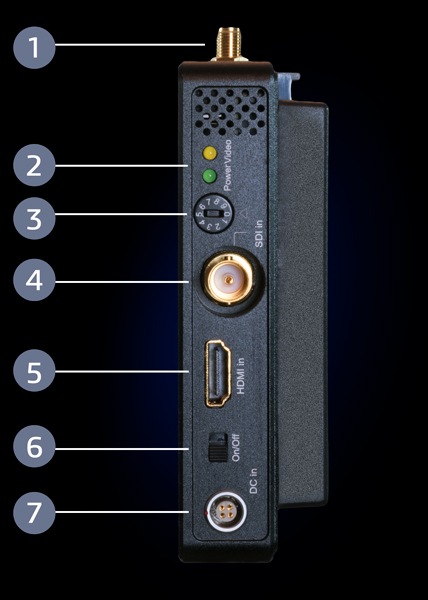

    Transmitter →

  1. 2x Antenna Port
  2. Power/Video Indicator
  3. Freq. Select 0-9
  4. SDI Input
  5. HDMI Input
  6. Power Switch
  7. DC In. Lemo 4Pin B
jkj

Cosmo400 Specifications

Spec.

On Transmitte (TX)

On Receiver (RX)

Interface

 SDI in (BNC female), HDMI in (Type-A female), 2x Antenna port (RP-SMA male), DC in (Lemo 4-pin female) SDI out (BNC female), HDMI in (Type-A female), DC in (Lemo 4-pin female)

Voltage Range

 7vDC to 36vDC 7vDC to 36vDC

Power Consumption

 Less than 6.5w Less than 7.5w

Dimension (LxWxH)

 115mm x 67mm x 23mm (Antennas not included) 152mm x 95mm x 23mm

Weight

 270g (Antennas included) 355g

Signal Indicators

 Power (Green LED), Video (Amber LED) Power (Green LED), Video (Amber LED), Wireless Strength RSSI (4 level Blue LED)

Video Formats

 HDMI Input (Type A full size Connector)
  • 525i, 625i, 720p @ 50, 59.94, 60 FPS
  • 1080i @ 50, 59.94, 60 FPS
  • 1080p @ 23.98, 24, 25, 29.93, 30, 50, 59.94, 60 FPS
SDI Input (Full size BNC Connector)
  • 3G, HD, SD-SDI (Auto Selected)
  • SMPTE 259/274/292/296/372/424/425
 HDMI Output (Type A full size Connector)
  • 525i, 625i, 720p @ 50, 59.94, 60 FPS
  • 1080i @ 50, 59.94, 60 FPS
  • 1080p @ 23.98, 24, 25, 29.93, 30, 50, 59.94, 60 FPS
SDI Output (Full size BNC Connector)
  • 3G, HD, SD-SDI (Auto Selected)
  • SMPTE 259/274/292/296/372/424/425

Audio Formats

 Input: SDI Embedded 2 Channel 24bit @ 48Khz Output: SDI Embedded 2 Channel 24bit @ 48Khz

Frequency Bands

 5.1Ghz to 5.9Ghz with 10 position Knob, Configurable for use in Europe/UK, N.America, China, etc. 5.1Ghz to 5.9Ghz with 10 position Knob, Configurable for use in Europe/UK, N.America, China, etc.

Transmission Power

 18dBm Maximum N/A

Receiver Sensibility

 N/A -75dBm

Mounting Points

 1/4”-20 (tripod) 1/4”-20 (tripod)
    Other Specs.
  • Modulation mode: OFDM 16QAM
  • Occupied Bandwidth: 40MHz
  • Temprature Range: Operation 0°C to 40°C, Storage -20°C to 60°C
  • Compliance: FCC, CE.

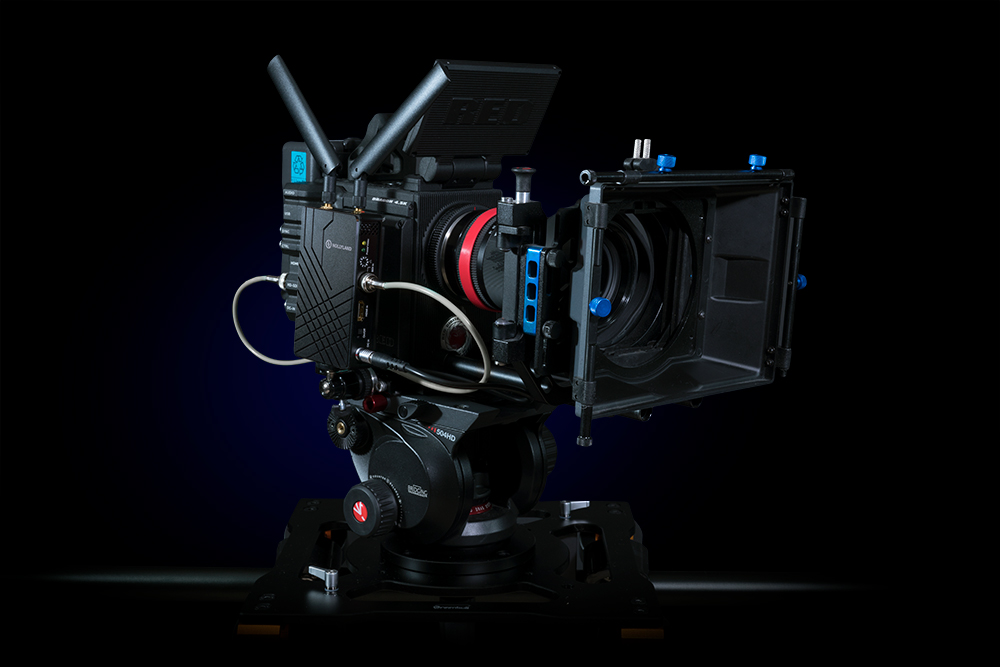

Hollyland Cosmo400 Wireless TX on camera in action

Package contents

The package contains 1x Transmitter and 1x Receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provides a 3G/HD SDI output and a HDMI output.

The Transmitter has 2 stick antennas. The Receiver has has internal integrated antennas.

Delivery and Support

Worldwide Delivery in 5 to 7 working days from UK. Free Delivery in UK and European States.

UK local Support Centre. Lightning fast RMA and Support.

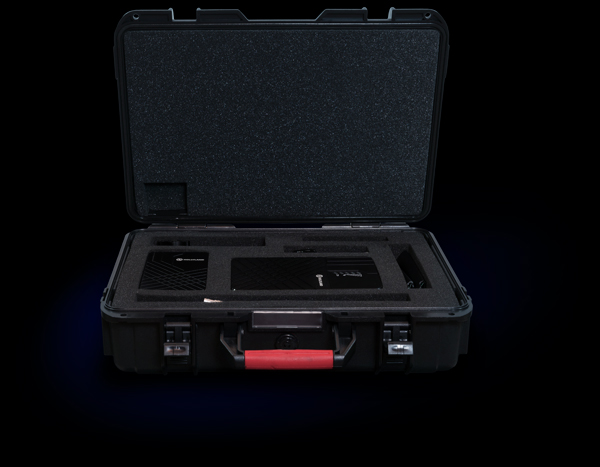

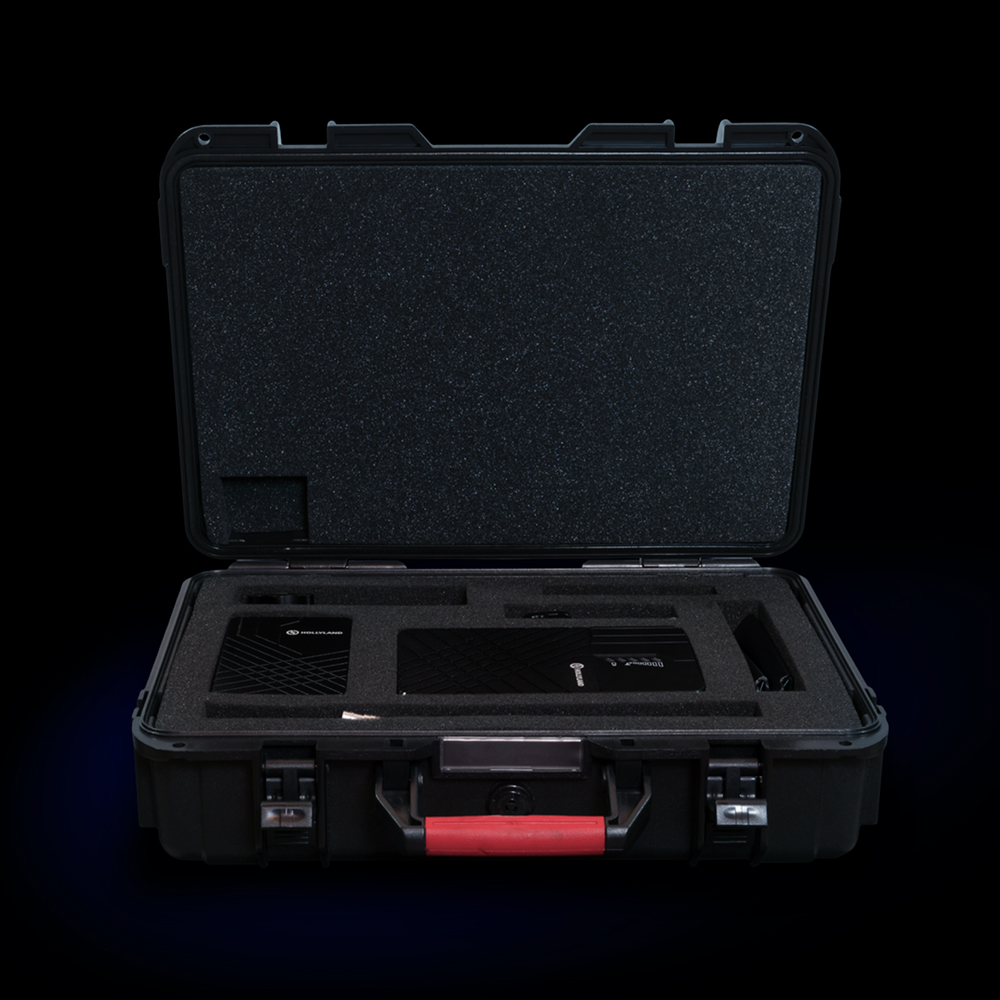

Hollyland Cosmo400 Bespoke Carry Case
